1978 V35 electronic ignition loom.

Technical Small Block V Twins (not new V7s)
1

Hi, I am trying to find the wiring from the pick-ups to the 4 pin plug with 2 black and white and 2 white wires. Might anyone have one for sale?

2

Can you make one yourself?

3

I hadn’t thought of that. Probably not, though I know a man who can. He does take a while though, hence still not on the road…

1 Like
4

It will probably be the same over a few models, I am out at the moment but I will look it up later.

Have fun!

1 Like
5

Neil

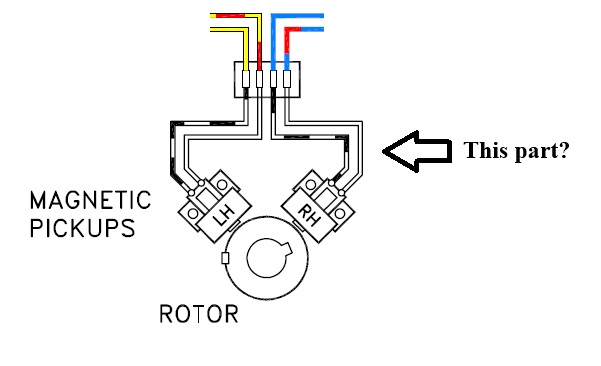

As far as I am aware the electronic ignition sub-loom on the V35 is similar to the V50, V50II and V50 Monza. It is NOT the same on the V35II, V35III, V35C, V35 Imola, V50III, V50 Monza II or V75.

I hope this helps.

V50_V35_V50IIignition loom
V50_V35_V50IIignition loom601×366 29.3 KB

1 Like
6

Yes, that helps. Thanks. I had some advice from Pete (wyegrove2008 on ebay)
He said about re-sleeving the wires with heat shrink and replacing the spade terminals. I still have a few things to sort before I tackle that, but how do the pick-ups attach? Just concerned about getting them back in the correct position.

7

I have a set but they have seen better days if you get desperate!

1 Like
8

Pee,M’d you.

9

I’m interested if they’re still available.
