Front brake disc and calipers - alignment [Sport 1200]

Technical All CARC models
1

I noticed a while ago that my front brake discs are not centred between the brake calipers (i.e. on the join line). The problem is that the difference cannot be taken out with shims as its the wrong side of the line.

Has anyone noticed this as well?
or
tried to rectify this?

2

Just how far out are they?
Are they equidistant and on the same side of central both sides?

Opposed-Piston Calipers will allow for a slight off-centre mounting, so unless they’re more than a mm or so out, I wouldn’t worry.

Photos?

3

Not the best of photos but one side looks lined up and the other is out

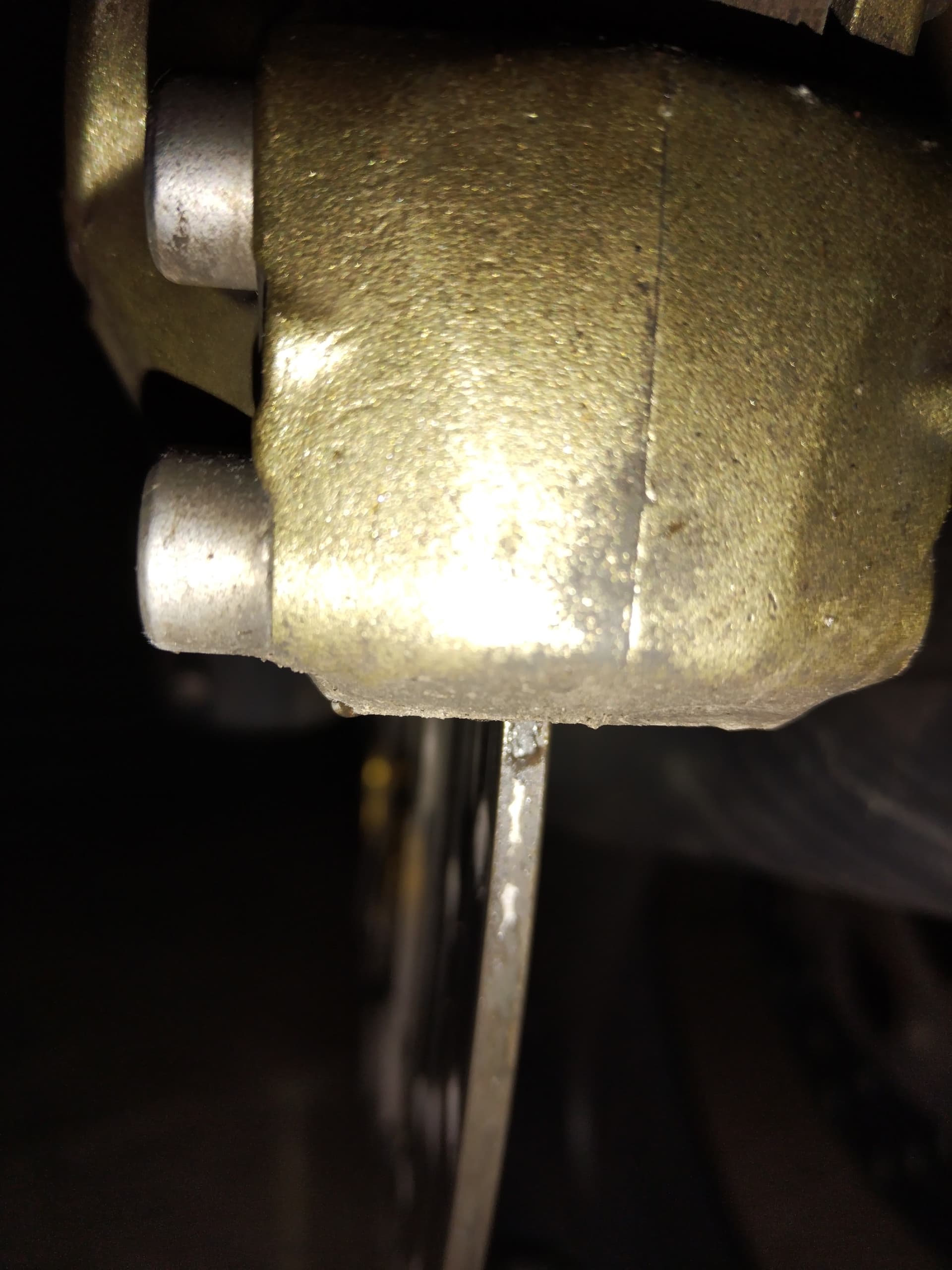

Disc_1
Disc_11920×2560 213 KB

and the other side

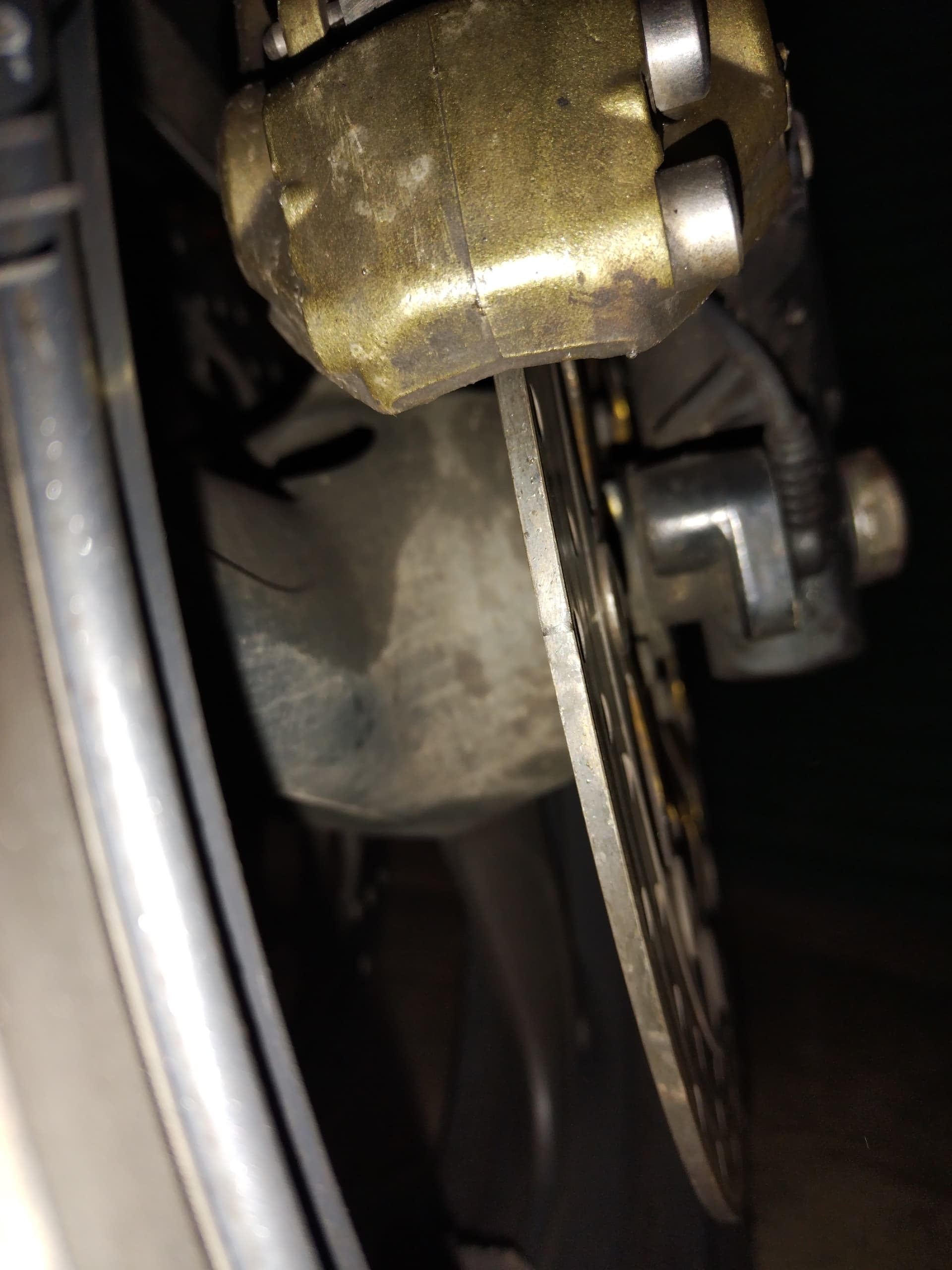

Disc_2
Disc_21920×2560 235 KB

Main problem is uneven pad wear, so you have to renew a set because of one pad. I know they self adjust depending on the gap to fill.
