Could some kind person post a pic of the coils mounting on V50II / Monza please? The bike arrived as a rolling chassis with a big box of bits, but it’s been so long since I’ve spannered one of these that I’ve forgotten how they mount. This thread - ‘V50 Mk3 Original coils’ - has had the pics removed and what remains is pretty much impossible to make out under the watermark.
Thank you.
-Dai

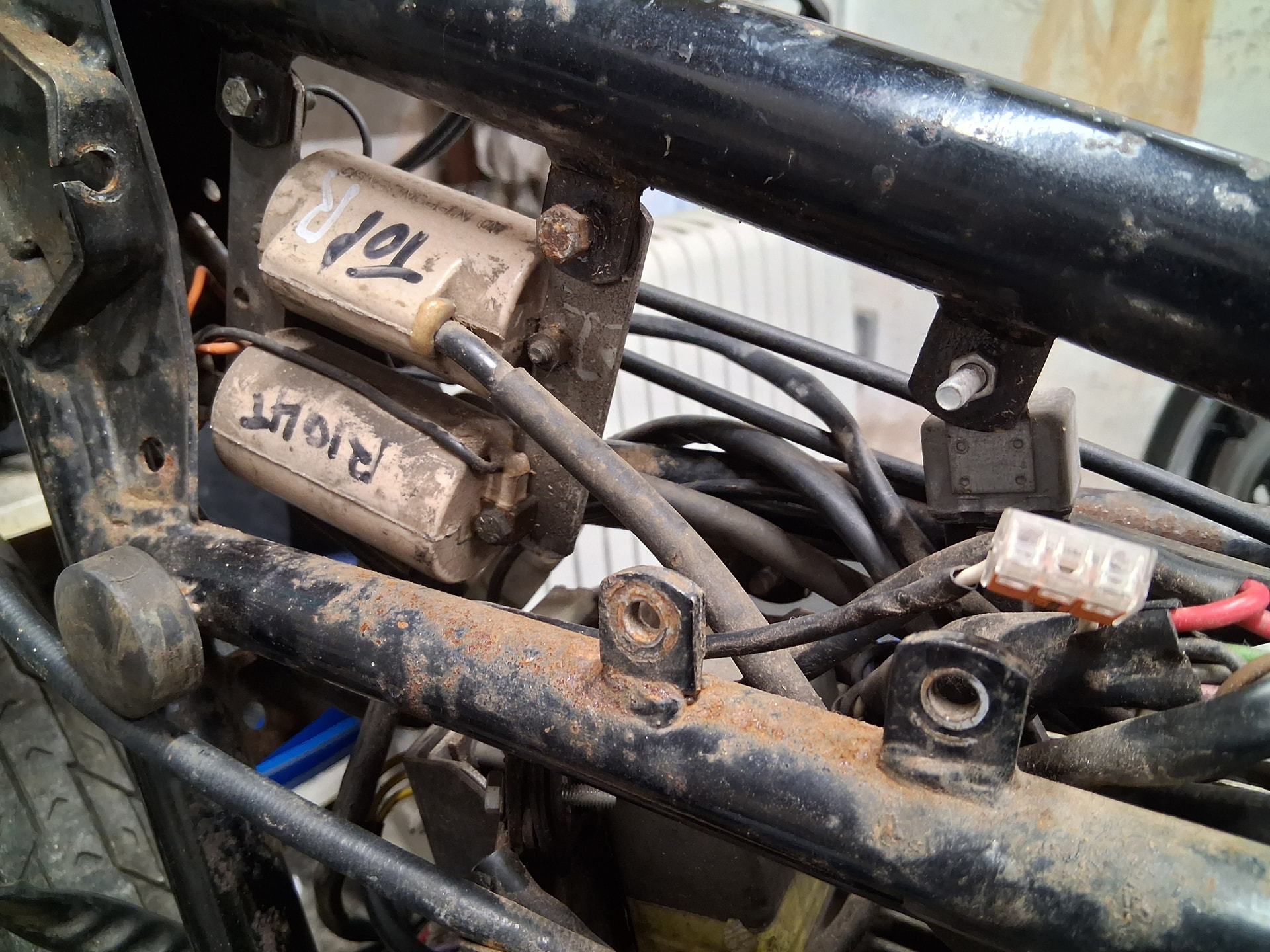

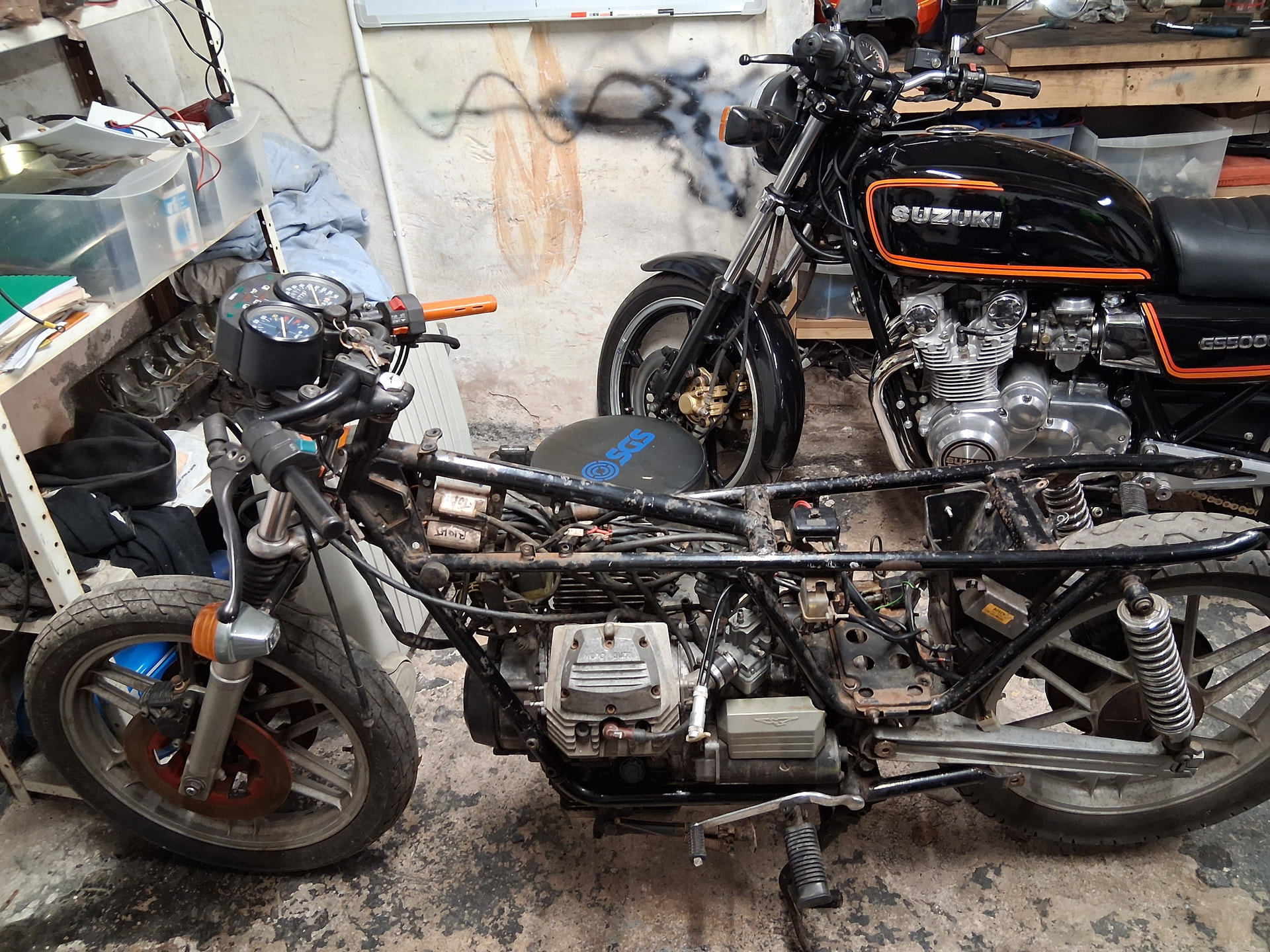

Here you go. A couple pics from when I stripped mine last year. I hope these help. I’ve got quite a few photos, if you need anything else, ask and hopefully I can help.
Thanks Steve. That is indeed very helpful
Hi
I’ll have a look to see if I have any pictures I’d saved at the time.
Mine were mounted horizontal, side by side, unlike the other Steves pictures
Steve.
As it happens, today I stumbled across a picture in the blue cover V50 manual p19, fig 23 that shows the mounting as SteveCorner shows it. It’s supposed to be showing how to adjust that awful remote front master cylinder but does a good job of showing the coil mounts too.
Excellent. I’m glad you have a solution.
Happy motoring
Steve M
