Where does this go please?

Technical All CARC models
1

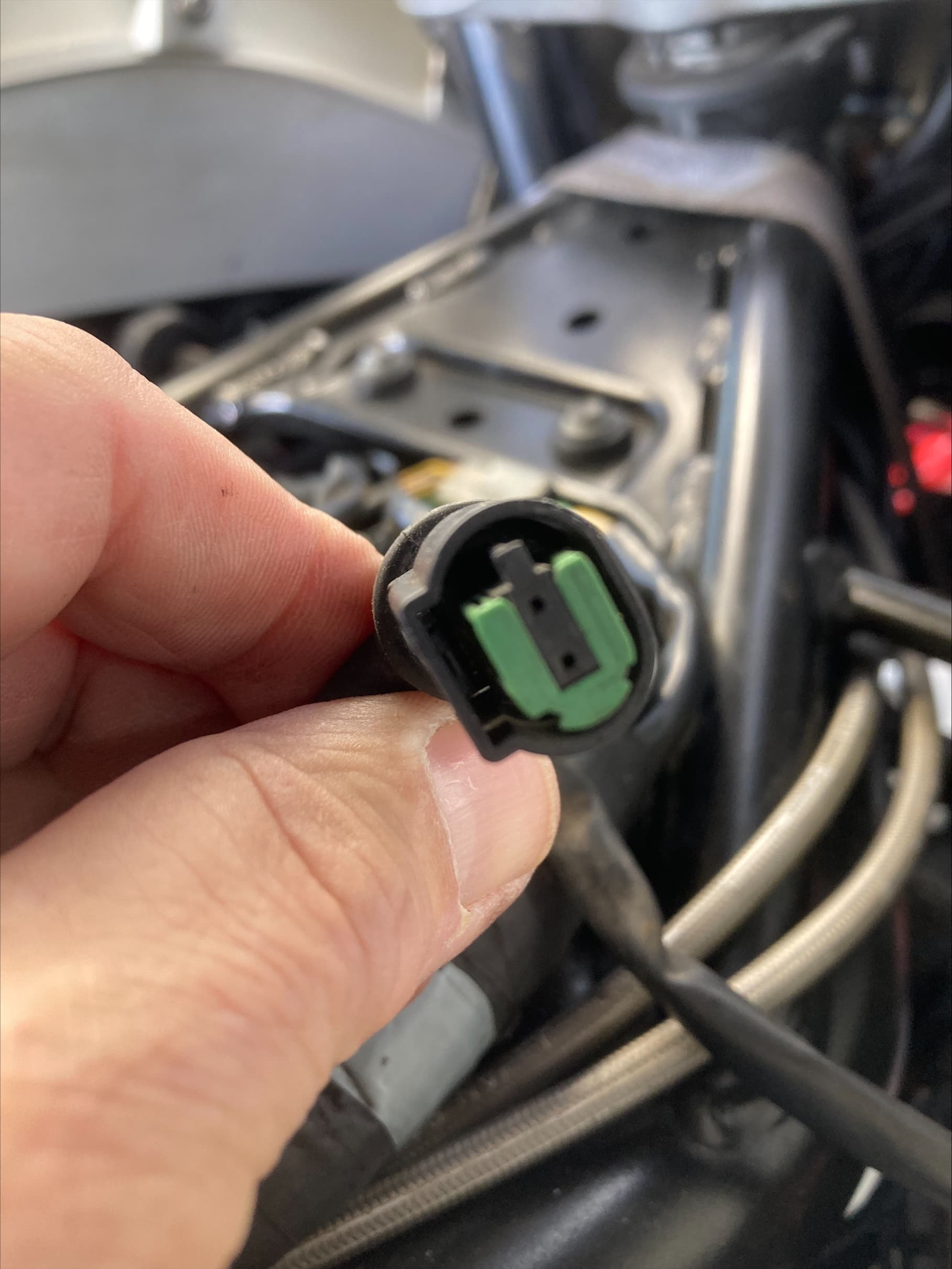

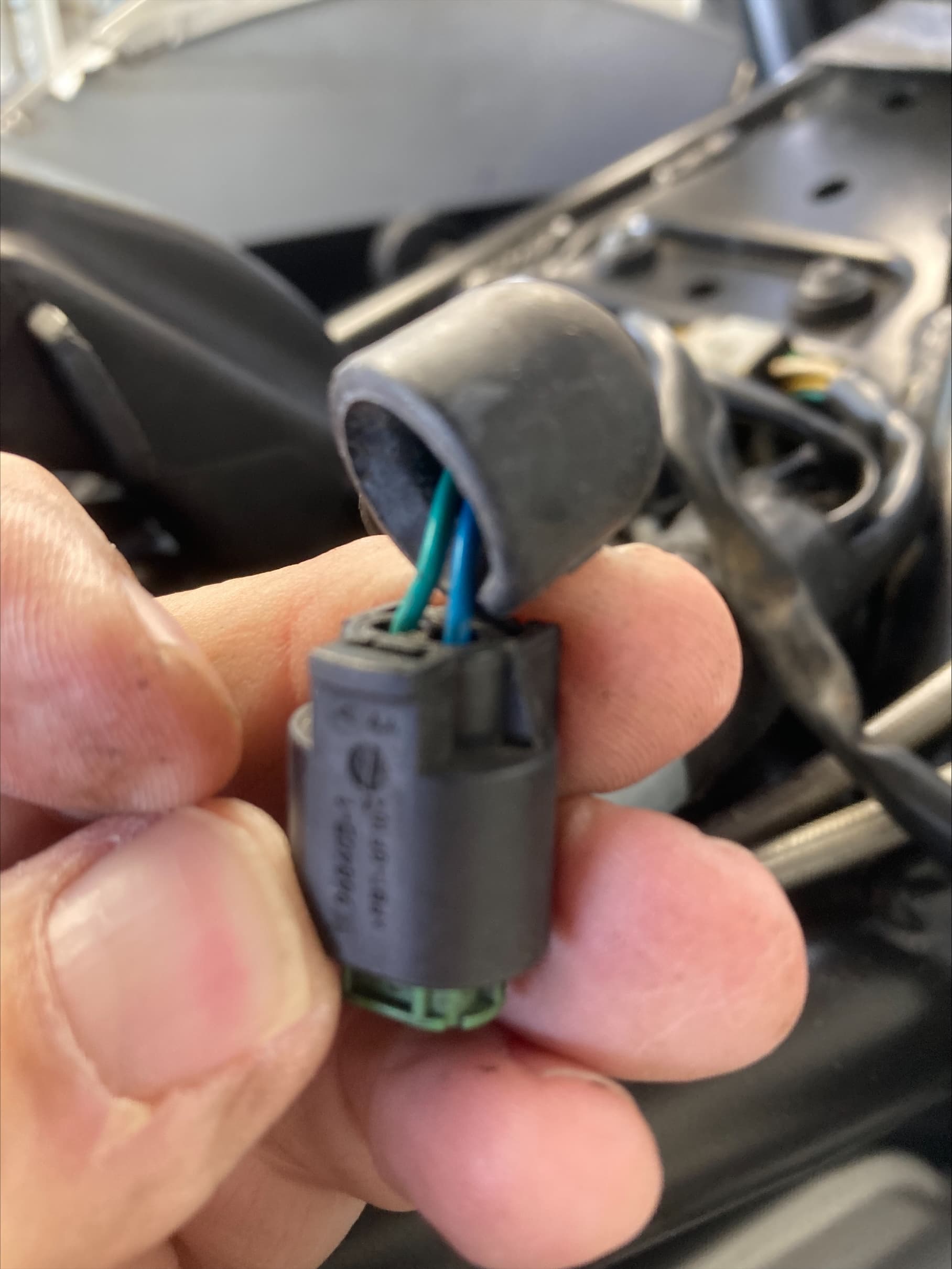

Sorry about all the questions guys. I have looked in the manual and can’t see where this goes, does anyone have any idea please?

processed-A439C13E-E9E7-4B51-A1C8-5652E63EBAA6
processed-A439C13E-E9E7-4B51-A1C8-5652E63EBAA61816×2420 162 KB

processed-30FCBB58-04B0-4DA7-9C0B-0DBABEBD8D74
processed-30FCBB58-04B0-4DA7-9C0B-0DBABEBD8D741816×2420 195 KB

2

What bike do you have?

3

Hi Westie, I assume you are talking about the Norge. That connector is for the TomTom GPS unit. Unfortunately it fits the TomTom Rider 400, which is obsolete and longer supported by TomTom. I cut the connector off and fitted a Superseal connector. I then fitted the other half of the connector to the TomTom fly lead for the later TomTom 550 which is still supported. Hope this helps, Phil

3 Likes
4

Sorry guys,

Yes it is 2014 Norge. Thanks for the help, I was just about to take the air filter back out to see where it came from, you guys saved me a whole load of work. Thanks.

1 Like
