Hi all anyone know the size of the molex connectors on my sp1000 need to replacace the plugs under the tank.
Cheers
Which one, 15, 12 or 4 way?
Umm, Roy? Molex connections
1 Like

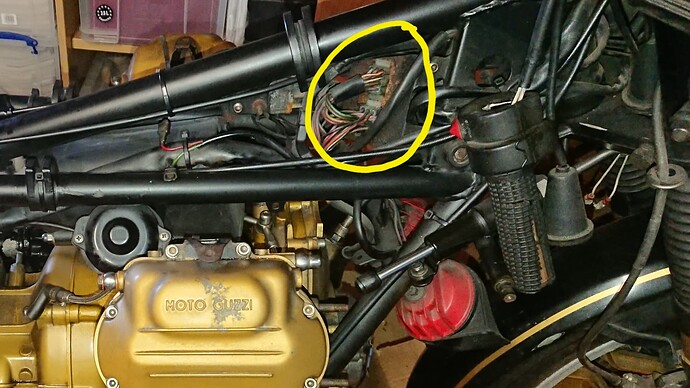

The big electrical plugs for handle bar controls sitting between the cylinders 12 and 15 pin.
Molex is a ‘standard’ - get 12 and/or 15 pin versions from the sources provided earlier and you’re good to go.
I believe there are different pin sizes.
As stated above the two main connector blocks are a 3x4 and a 3x5 and both have one edge that is “pointy”. The recepticle side has ears for locating in the bracket under the head stock. The pin sizes are 6.3 x 0.8mm.
Some of the later bikes with A printed circuit board had a slightly different arrangment.
I used Tyco for my re-wire. Search TYCO Mate N Lok on Ebay. You will also need a pair of folding style crimp pliers e.g. Ebay item 224508147607
A very small screwdriver can release the tabs of the pins from the old connectors, but if these are dirty I would trim back and re-terminate.
Thanks all for info.
