Morning all, I’m looking for an original type headlight and headlight brackets if anyone has one. Also looking for the clock mounting brackets as mine make the clocks sit too high.
Many thanks all

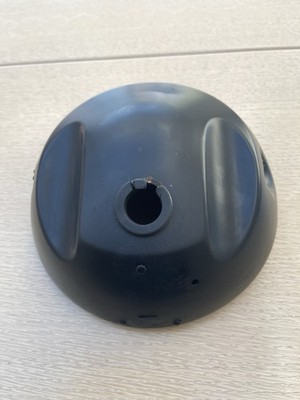

There’s a headlight on ebay that claims to be from a LeMans. You might want to check the accuracy of that as I’m no expert on LeMans parts.

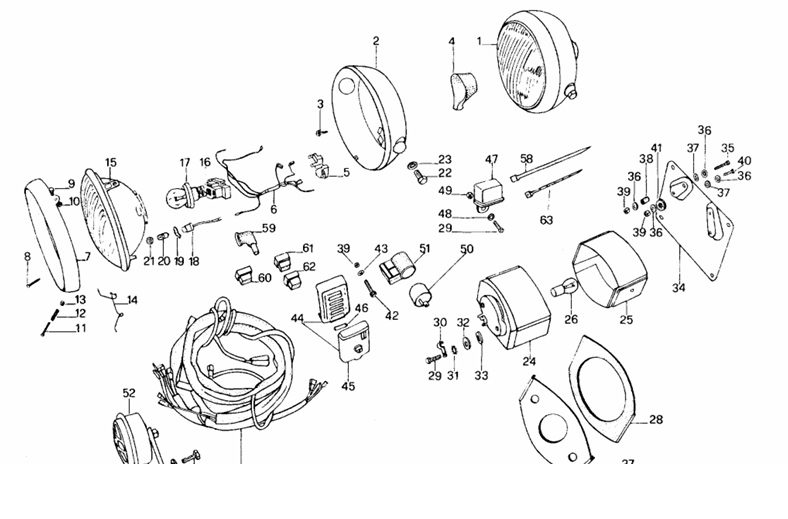

I cannot tell if the one in the parts book for the LM 1 has the dimples in the sides and a single cable hole as the one above.
Earlier 850T and later T3s hade more rectangular holes for multi pin plugs. and do not have the dimples. Like this one click here from Gutsibits.
The clock supports are bent pear drop shapes with a large hole that fit over the fork leg and a small hole to attach the clock support to. Depending on how you place them the clocks will be higher or lower
There was a thread about this earlier this year…
I’ve found it click here

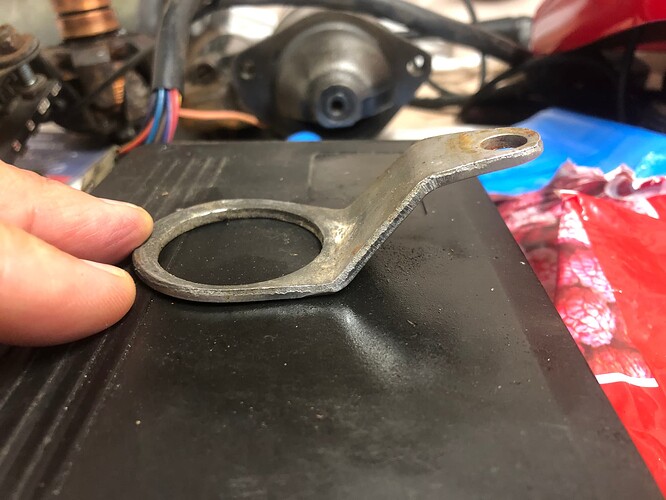

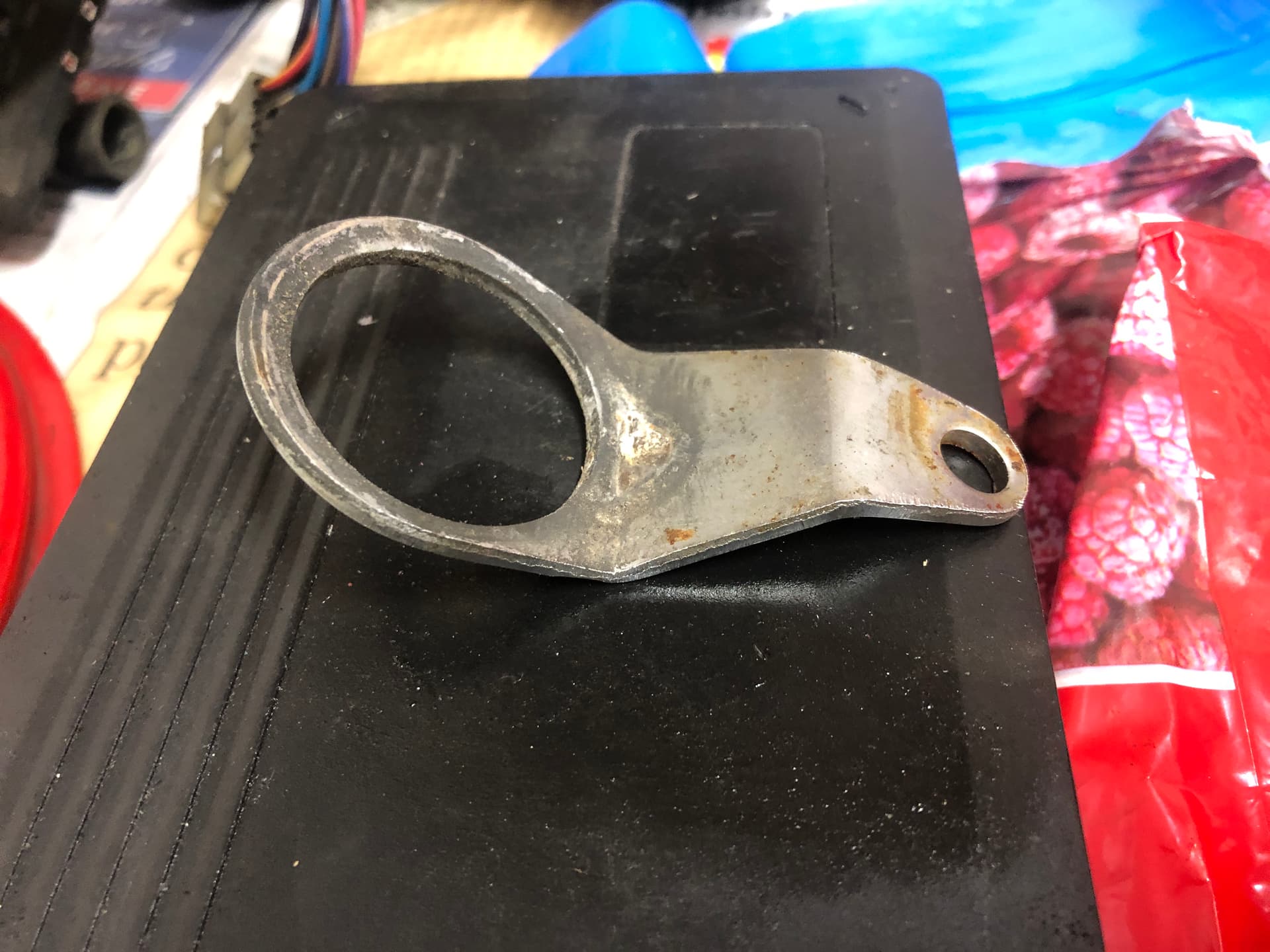

Jamie, post a photo of your clock brackets on the forks please.

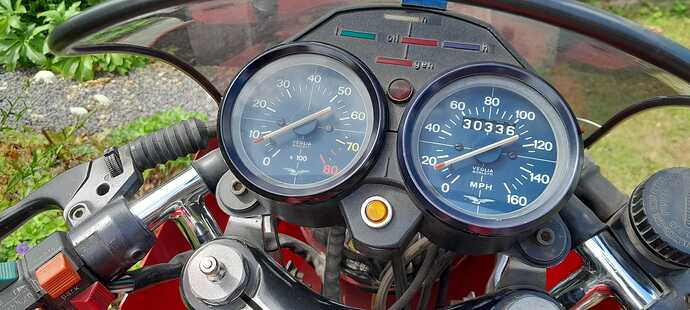

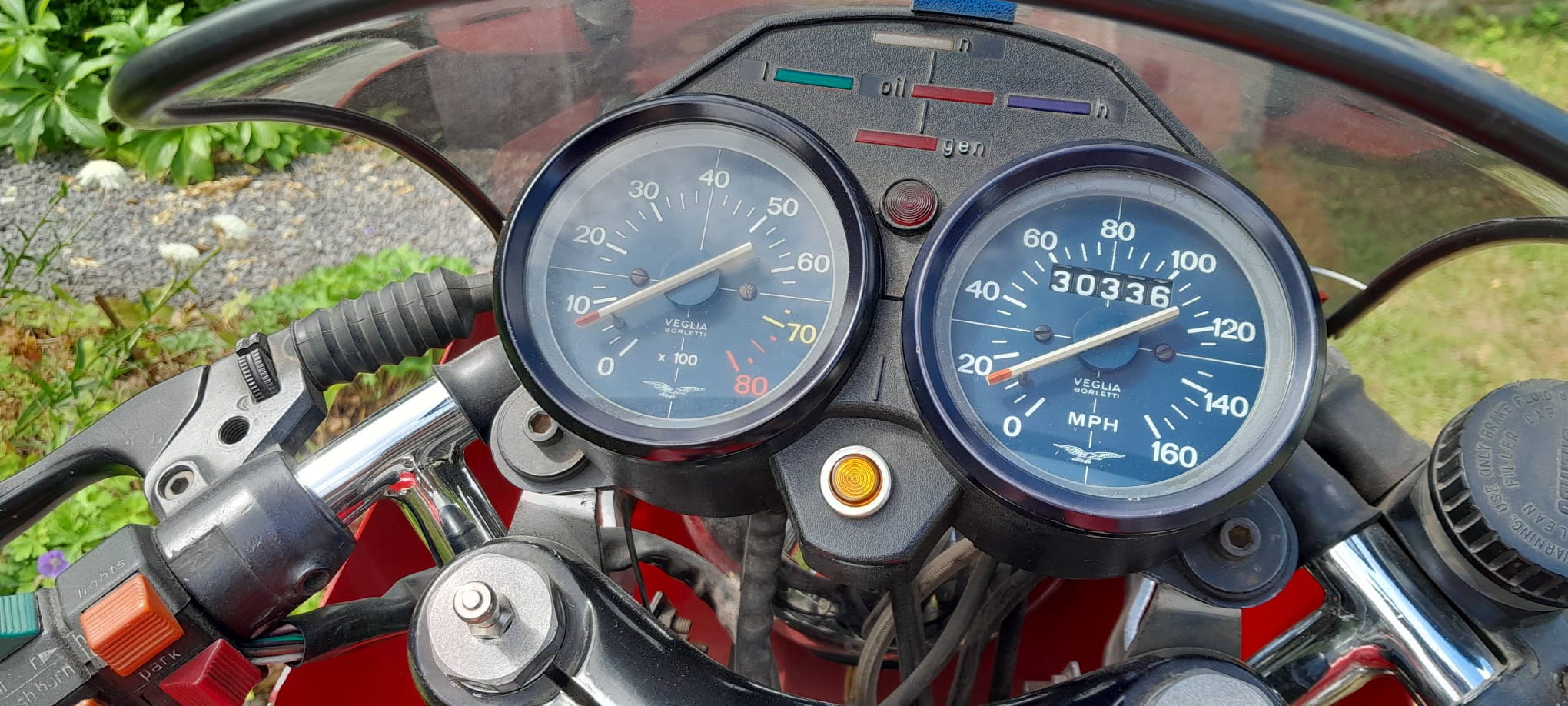

many thanks for the replies guys, sorry been away for the weekend and just read messages. The bike at some time had a full fairing fitted and then the previous owner fitted the correct fairing but purchased a different headlight, brackets and clock brackets. Again, it does seem to vary from the bike pictures I look at, with some clocks sitting higher than others, but I am sure that if the correct headlight brackets are fitted and have the clock mounts positioned on top, there is not room to adjust up and down? There is even a small amount of foam to stop the clocks hitting the fairing.
Would the clocks foul anything if the brackets were the other way up?
Think they would Chris. Th bike is completely apart but when it starts to go back together, I’ll try a few set-ups. Hopefully going to get the original set-up if anyone comes good
.
Thanks
